spelsberg接線盒 塑料防水端子盒
產品詳情

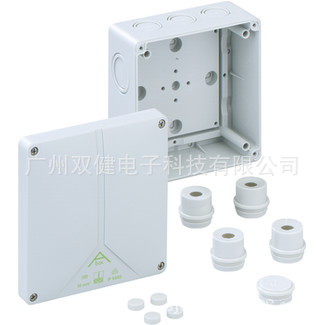

spelsberg防水接線盒 Abox塑料分線箱 防水配電箱 IP65接線盒
德國ELS / spelsberg產品Abox接線盒描述 | |||
| 名稱: | Abox接線箱 | |
型號: | Abox 100-L | ||
編號: | 81091001 | ||
端子數: | 無 | ||
額定電壓: | AC690V | ||
| IP等級 | IP65 | ||
材質: | 聚苯乙烯 | ||
外形尺寸： | 140 x 140 x 79mm | ||
具體參數請來電來函咨詢 | |||
Email：sales@sj-gz.com、http://www.sj-gz.com、http://www.82484699.cn 、http://sjdz2016.cn.alibaba.com | |||
Technical data
Measures:
Width:140 mm
Length:140 mm
Height:79 mm
Material:
Cover:polystyrene
Box:polystyrene
material:polystyrene
Other attributes:
Entries:12
Rated cross section:10 mm2
Tackable:No
Rated insulation voltage AC:690 V
Explosion safety:none
Functional integrity:none
sealable:No
Heavy metals-free:Yes
PVC-free:Yes
Silicone-free:Yes
Ingress protection:IP65 - acc. to EN 60529 / DIN VDE 0470-1
weatherproof:No
Combustion behaviour acc. to UL 94:HB acc. UL94
Combustion behaviour acc. to VDE:650°C acc. VDE 0471/ EN 60695
Environmental attributes:
Ambient temperature (min.):-25 °C
Ambient temperature (max.):40 °C
Ambient temperature (24 h):35 °C
Max. rel. humidity at 25° C (short term):95%
Max. rel. humidity at 40° C:50%
